BCF Series
BCT Series
The new product line of BIOFIAL S.A. the “BIOFIAL Compact Cargo Lifts” product line, offers complete solutions for lifting cargos. The “BIOFIAL Compact Cargo Lifts” can be used mainly in industrial and logistic properties, where there is a need of an easy-to-install hydraulic lifting solution that provides safety in use, durability in heavy cagro lifting and reliability in intense working conditions.
BIOFIAL offers a standardized range of products up to 1ton rated load max., and also has the ability to offer solutions up to 2tons rated load max., after customers demand (available with customer’s special order).
The new standardized product line consists of the following products:
| BCF 600 | Indirect (2:1) acting with frame, 600kg max. rated load |

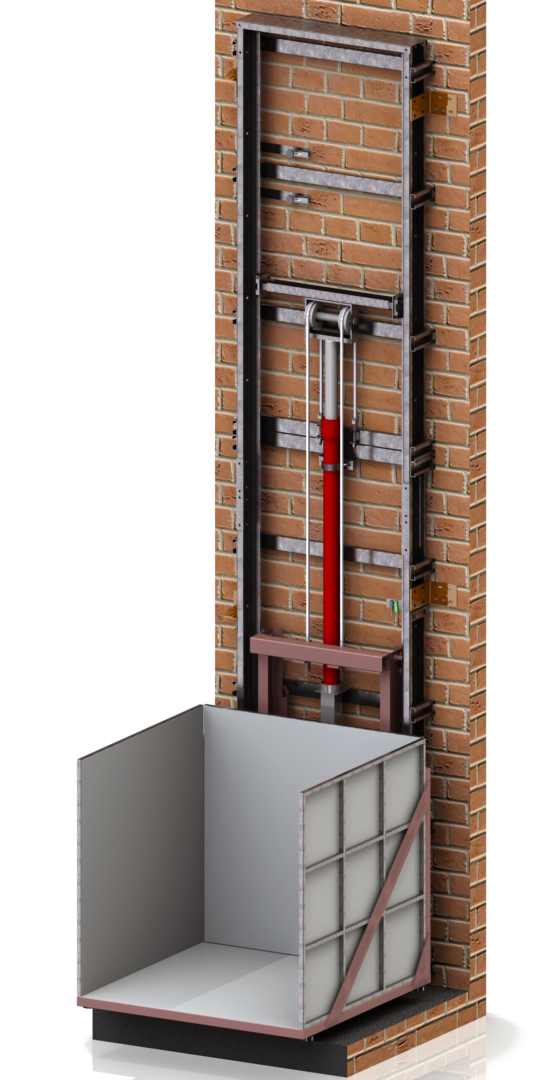

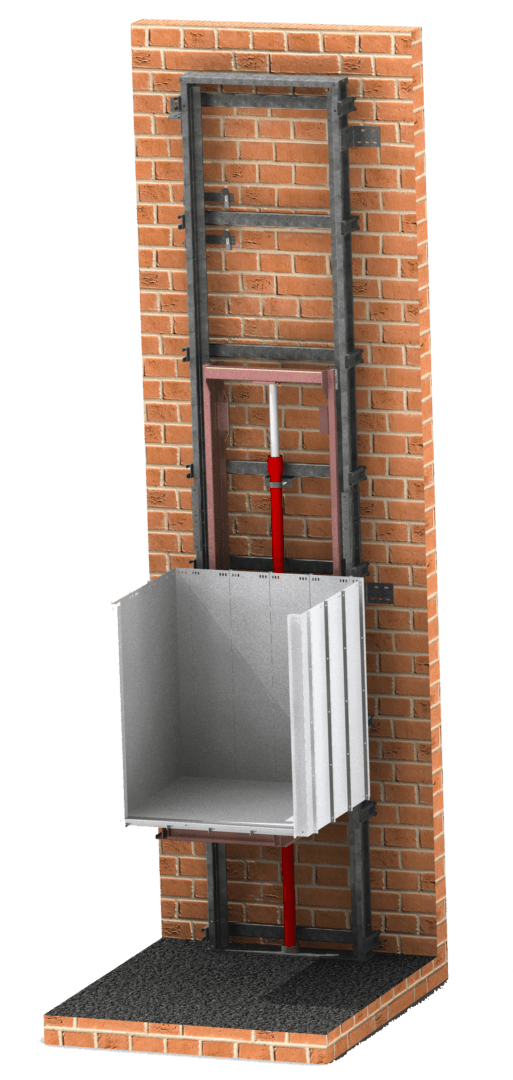

| BCF 1000 | Indirect (2:1) acting with frame , 1000kg max. rated load |
| BCF 600 D | Direct (1:1) acting with frame, 600kg max. rated load |
| BCF 1000 D | Direct (1:1) acting with frame, 1000kg max. rated load |
| BCT 600 | Indirect (2:1) acting with trolley, 600kg max. rated load |
| BCT 1000 | Indirect (2:1) acting with trolley, 1000kg max. rated load |
| BCT 600 D | Direct (1:1) acting with trolley, 600kg max. rated load |
| BCT 1000 D | Direct (1:1) acting with trolley, 1000kg max. rated load |
The products are pre-mounted with a firm metal construction, they perform noiselessly and with smooth movement, they can be quickly and easily installed, and they have complete certification according to ΕΝ 81.3 E.E. directive.
| Type | BCF – 600 | BCT – 600 | BCF – 1000 | BCT – 1000 | BCF – 600 D | BCT – 600 D | BCF – 1000 D | BCT – 1000 D | |
|---|---|---|---|---|---|---|---|---|---|
| Acting | Indirect 2:1 | Indirect 2:1 | Indirect 2:1 | Indirect 2:1 | Direct 1:1 | Direct 1:1 | Direct 1:1 | Direct 1:1 | |
| Max. Rated Load (Kg) | 600 | 600 | 1000 | 1000 | 600 | 600 | 1000 | 1000 | |
| Max. Suspended Load (Kg) | 870 | 900 | 1540 | 1580 | 950 | 1000 | 1600 | 1650 | |
| Min. Pit (mm) | 250 | 140 | 300 | 140 | 250 | 140 | 300 | 140 | |
| Min. Headroom (mm) | 2000 | 2000 | 2500 | 2500 | 3200 | 3200 | 3200 | 3200 | |
| Platform Width – PW (mm) | 1600 | 1600 | 1800 | 2000 | 1600 | 1600 | 1800 | 2000 | |
| Platform Depth – PD (mm) | 1200 | 1300 | 1500 | 1600 | 1200 | 1300 | 1500 | 1600 | |
| Guide Rails | 75 x 62 x 10 | 75 x 62 x 10 | 89 x 62 x 16 | 89 x 62 x 16 | 75 x 62 x 10 | 75 x 62 x 10 | 89 x 62 x 16 | 89 x 62 x 16 | |
| Ram | Ø 60 solid | Ø 60 solid | Ø 80 – Ø 90 x 10 | Ø 80 – Ø 90 | Ø 50 | Ø 50 | Ø 70 | Ø 70 | |
| Max. Travel (m) | 12 | 12 | 12 | 12 | 9 | 9 | 9 | 9 | |
| Max. Speed (m/sec) | 0,15 | 0,15 | 0,15 | 0,15 | 0,15 | 0,15 | 0,15 | 0,15 | |
| Guiding Objects | Shoes | Shoes | Rollers | Rollers | Shoes | Shoes | Rollers | Rollers | |
| DBG (mm) | 500-1000 | 500-1000 | 700-1200 | 700-1200 | 500-1000 | 500-1000 | 700-1200 | 700-1200 | |
| Rapture Valve | 1/2 ” | 1/2” | 3/4 ” | 1/2” | 1/2 ” | 1/2” | 3/4 ” | 1/2” | |
| Tank | T.A. 25 – 53 | T.A. 25 – 53 | T.B. 70 – T.B. 130 | T.B. 70 – 130 | T.A. 25 – 53 | T.A. 25 – 53 | T.B. 70 | T.B. 70 – 130 | |
| Pump (lit/min) | 12 | 12 | 23 – 30 | 23 – 30 | 23 | 23 | 35 | 35 | |
| Motor (Kw) | 2.9 | 2.9 | 4.8 | 4.8 | 2.9 | 2.9 | 4.8 | 4.8 |
