The new product line “BIOFIAL Hydraulic Car Platforms” is the first integrated hydraulic lift system built exclusively by BIOFIAL HYDRAULICS. Having a 40 years expertise and experience in the hydraulic industry, BIOFIAL HYDRAULICS aims to serve customers who seek high quality vertical transfer lift systems for vehicles, with maximum safety measures, made to meet the highest standards.

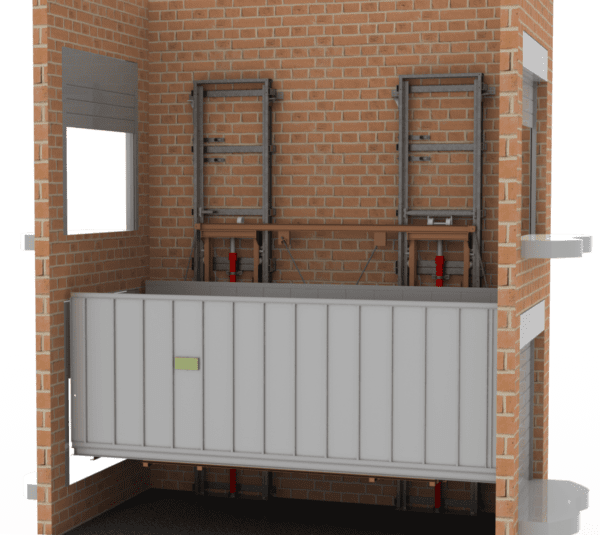

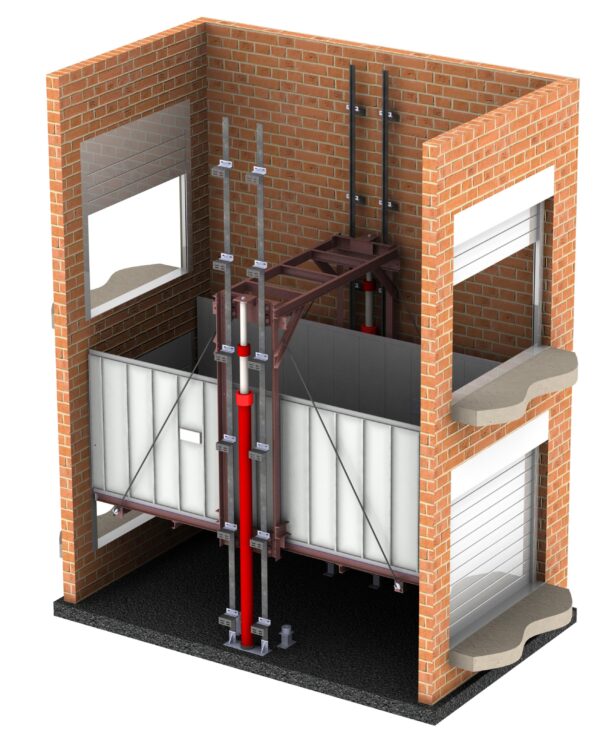

The new series consist of two series which operate with direct acting: the BH-CD, in which the pistons are located opposite each other in the shaft and the BH-CL D, in which the pistons are located beside each other on the same side of the shaft. BIOFIAL HYDRAULICS is one of the few hydraulic manufacturers worldwide who have the ability to serve specialized requirements which cannot be met by standard solutions provided by the market. The two new series can be customized depending on the parameters of each project.
The wide useful floor area featured in the “BIOFIAL Hydraulic Car Platforms” makes them an ideal solution for applications with limited work space. Some other main advantages are the ease of installation, the ergonomics, the relatively low cost and above all the safety in use, because of the direct suspension cylinder operation (with the use of simple or telescopic cylinders). BIOFIAL HYDRAULICS’s option to provide systems with immediate suspension is a powerful advantage compared with the existing solutions, which operate with indirect suspension and the use of wire ropes, which lack in safety, ergonomics and ease of installation.
All the “BIOFIAL Hydraulic Car Platforms” are certified by prestigious certification bodies and with total accordance with the applicable EU directives.

Type  BH CD  /  BH CL – D
Rated load2000 kg2500 kg3000 kg
Travel 3000 – 9000 mm3000 – 9000 mm3000 – 9000 mm
Pit depth400 mm400 mm400 mm
Last floor height 3200 mm3200 mm3200 mm
Platform width (PW)2000 mm2500 mm3000 mm
Shaft width (SW)2550 mm3050 mm3550 mm
Platform depth (PD)5000 mm5500 mm6000 mm
Shaft depth (SD)5050 mm5550 mm6050 mm
Rod typeY1 – Y2 – Y3Y1 – Y2 – Y3Y1 – Y2 – Y3
Max. Speed 0.15 m/sec0.15 m/sec0.15 m/sec
Pump nominal supply 115 lt/min* / 75 lt/min*150 lt/min* / 100 lt/min*150 lt/min* / 125 lt/min*
Motor nominal power9.6 kw* / 7.7 kw*9.6 kw*11.8 kw*
* The values vary depending on the type of the rod.
